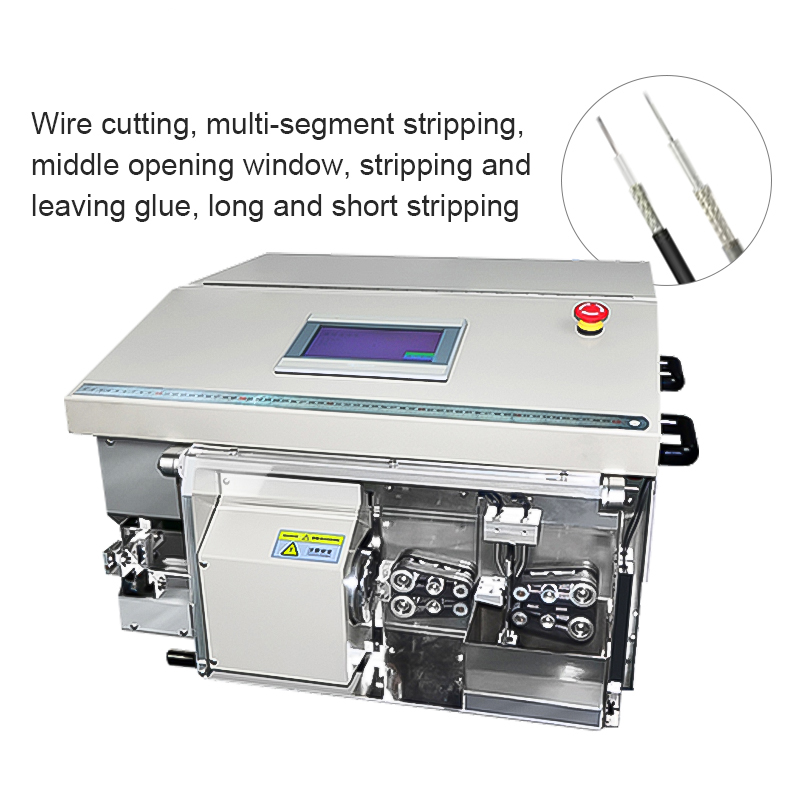

Semi-Auto Flexible Coaxial Cable Peeling Machine RF Cable Manufacturing Machine

Suitable for precision processing of various flexible thin coaxial cables in the communication and RF industries.
ꄴPrevious： Fully Automatic Flexible IPEX Coaxial Cables Strip Machine for RF Industries Harness Process
ꄲNext： V Shape Rotary RF Flexible coaxial cable Communication Wire Cut and Strip Machine

Model BR-18
Cutting ability 50mm-9999mm
Cutting depth unit 0.01mm
Maximum stripping capacity  Left end: 45mm;right end:100mm
Dimension   790*730*400mm
Power supply AC220V50/60HZ
Processing diameter   1.0-5.5mm
Processing efficiency   300-850PCS/H
Maximum number of peeling layers   layer 6
Weight 120kg
